| Art No. | HVA414 |

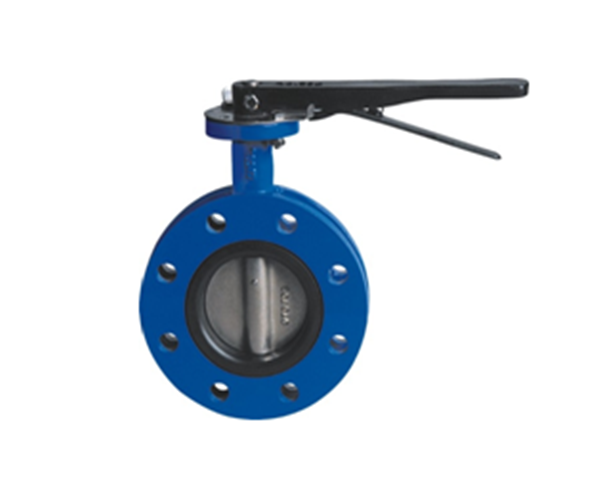

| Specification | Buttefly valves, U section type, lever operated |
| Design | MSS SP-67, BS5155, EN593 |
| Working pressure | Class 125 / Class 150, PN10 / PN16 |
| Face to face | EN558-1 Series 20 |
| Flange | ANSI B16.1 Class 125, EN1092-2 |
| Coating | Fusion bonded epoxy powder |
| Testing: | API 598, EN12266 |
| Size range | 2" (DN50) - 12" (DN300) |
| Catalogues (PDF) | Download |
